Description

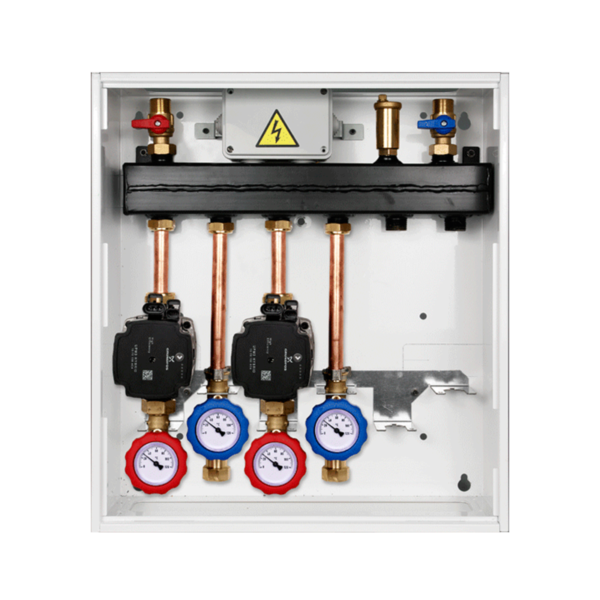

The NOVAZONE HEATING PUMPS module is a hydraulic accessory to be combined with heat pumps.
This module guarantees the correct water flow-rate and a correct pumping head in all heating systems.
The hydraulic manifold is integrated into this module. The excellent insulation is individually placed on each pipe and on the valves. This allows to maintain perfectly the water temperature. Thanks to this it is possible to work optimally with both hot and cold water.
Each zone is equipped with pump Grundfos UPM3 Hybrid, ErP-Ready.
The standard pump is set on the function «proportional pressure», but can easily be set on:
PWM: external control through PWM, A or C profile
PP: proportional pressure
CP: constant pressure
CC: constant curve
AA: AUTOADAPT
The single zone includes, besides of the pump, a supply and a return valve, a check valve and, in some equipments, analog thermometers.
Each valve is provided with a sensor probe that allows to check the temperature, both in the supply and in the return phase.
Other pumps are available on request.
Its shape enables easy installation and maintainability.
The unit can be wall- or flush installed.
