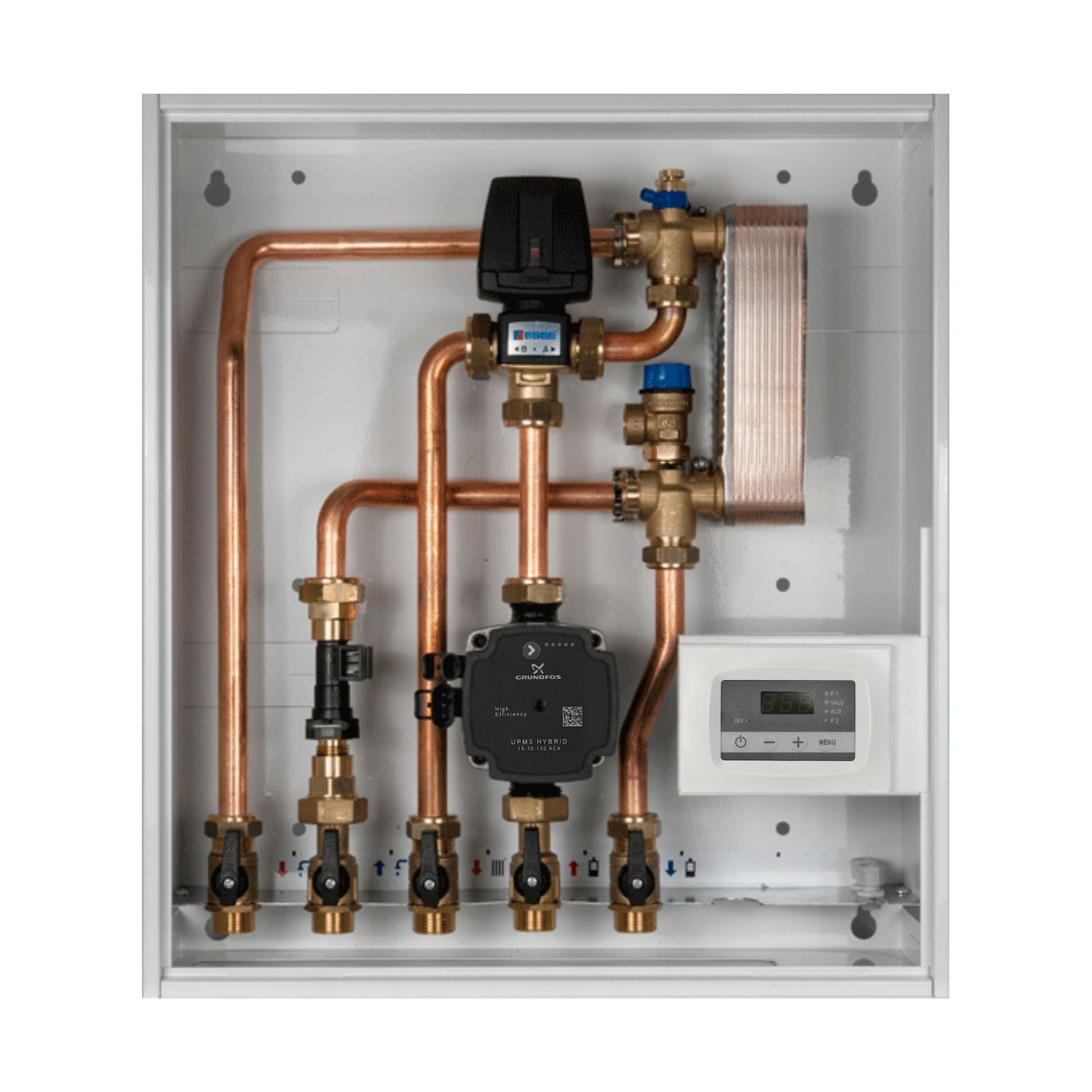

NOVABOX MOD 210

NOVABOX MOD 210

Module for heating and instantaneous domestic hot water control with a circulator

The NOVABOX range, model 200, covers the hydraulic functions of:
• Circulation of energy from a biomass generator to the heating circuit;
• Instantaneous domestic hot water production;
• Accessory functions of the system.

Categories: , Product ID: 19267

Versions

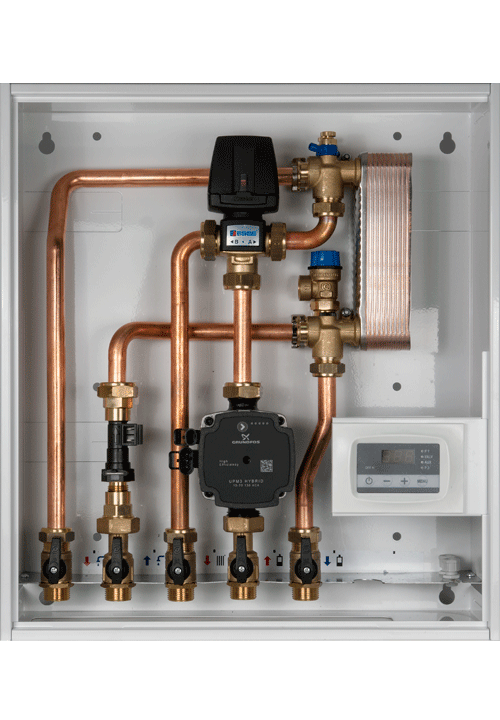

NOVABOX MOD 210

NOVABOX Mod. 210

Art. 12420

Cod. 19912420
Scarica il catalogo

Description

The hydraulic unit NOVABOX mod. 210, through the hydraulic layout, covers both the heating circuit management and the instantaneous production of sanitary water.

This product range 200 doesn’t cover the ISPELS circular requests. The GRUNDFOS UPM3 Hybrid pumps are the top of this range.
They give the possibility have up to 7 meter head pumps and the curves can be set with:

  • Proportional pressure (default)
  • Constant pressure
  • Constant curves

A simple and complete installation is enabled thanks to hydraulic accessories which are supplied as standard:

  • Valves
  • Check valves
  • Air vents
  • Safety valves
  • Temperature sensor

The hydraulic units can be supplied in metal boxes, to be wall-hung or to be built-in, painted The heat exchanger SWEP gives the possibility to produce instantaneously up to 20 l/min of hot sanitary water.

THE PRODUCT

The hydraulic unit NOVABOX mod. 210, through the hydraulic layout, covers both the heating circuit management and the instantaneous production of sanitary water.

This product range 200 doesn’t cover the ISPELS circular requests. The GRUNDFOS UPM3 Hybrid pumps are the top of this range.
They give the possibility have up to 7 meter head pumps and the curves can be set with:

  • Proportional pressure (default)
  • Constant pressure
  • Constant curves

A simple and complete installation is enabled thanks to hydraulic accessories which are supplied as standard:

  • Valves
  • Check valves
  • Air vents
  • Safety valves
  • Temperature sensor

The hydraulic units can be supplied in metal boxes, to be wall-hung or to be built-in, painted The heat exchanger SWEP gives the possibility to produce instantaneously up to 20 l/min of hot sanitary water.

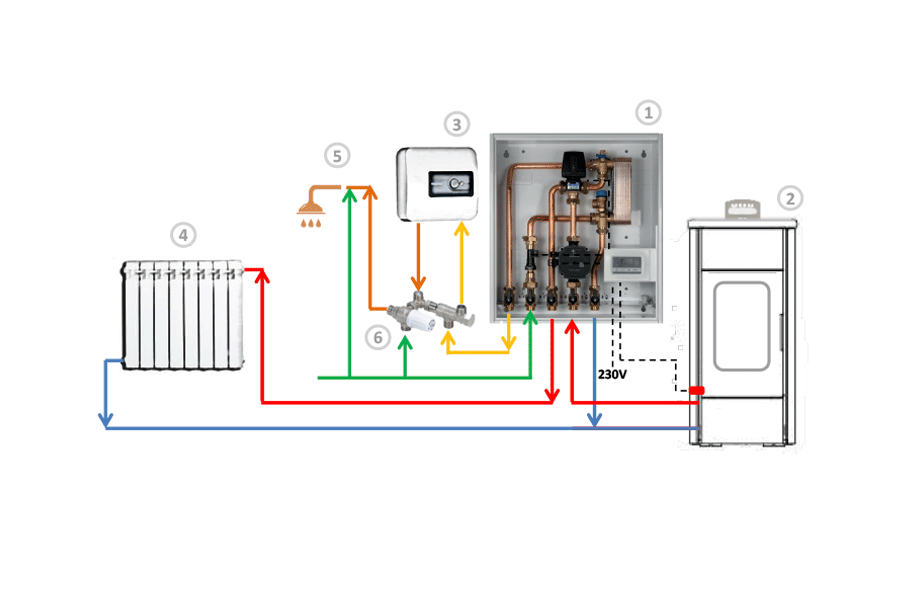

Scheme

NOVABOX MOD 210

Heating circuit with solid fuel generator equipped without pump and with unit for heating management with instantaneous production of sanitary water.

  • 1 - Modulo NOVABOX mod. 210.
  • 2 - Generatore a biomassa senza pompa.
  • 3 - Scaldacqua a gas o elettrico.
  • 4 - Circuito di riscaldamento.
  • 5 - Linea di acqua sanitaria istantanea.
  • 6 - KIT NOVAMIX con valvola di miscelazione e deviatore.
