Description

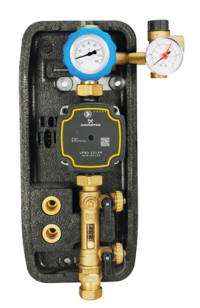

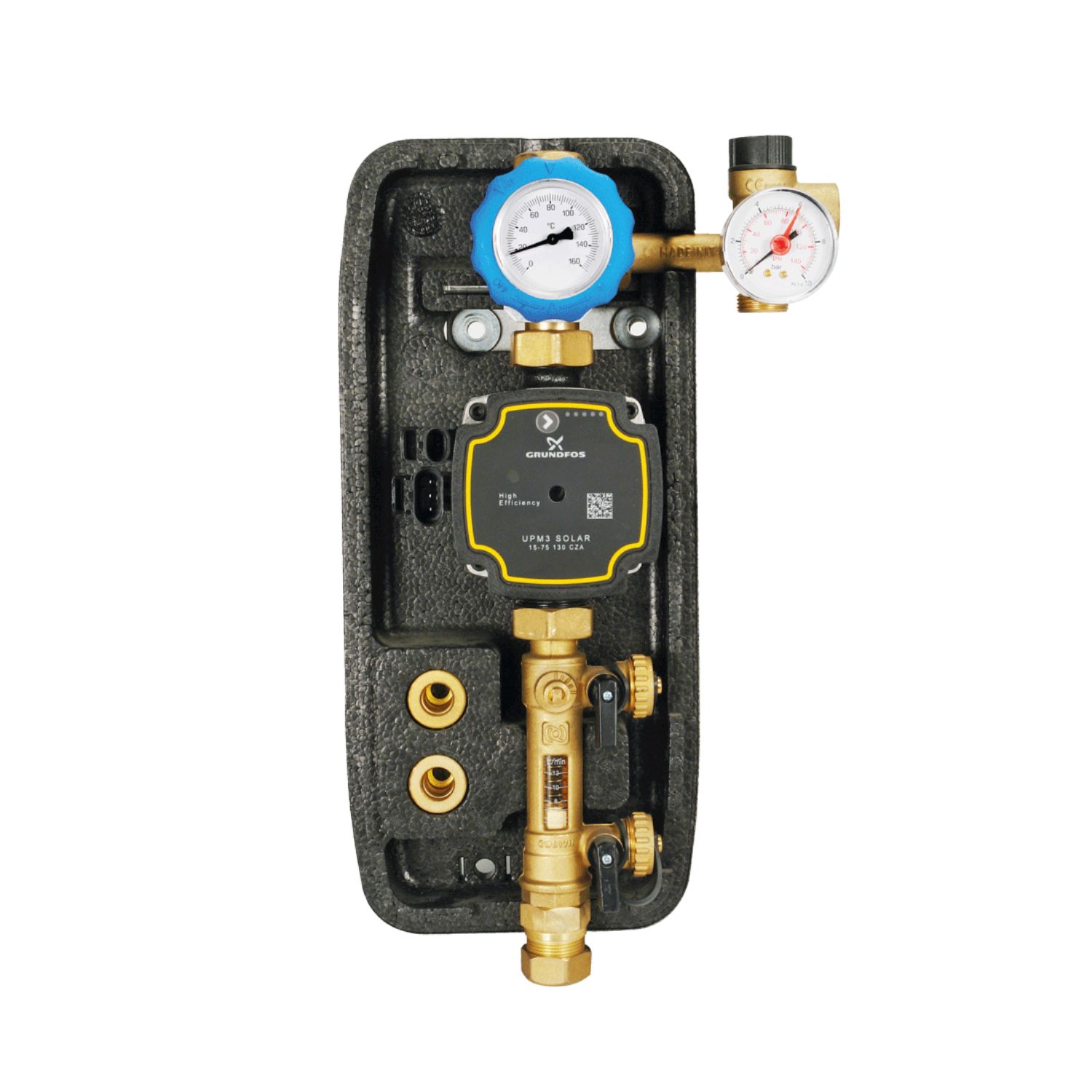

NOVASOL MONO 6610 solar circulation group guarantees the right flow-rate and an adequate prevalence of carrier fluid in solar panel systems.
The group has only the return flow, ensuring the functions necessary for operation. The group includes the system shut-off valve with thermometer and non-return valve. It is possible to exclude the non-return valve in case of system mainteinance. There is a safety group with a safety valve suitable for solar systems, a connection for the expansion vessel and a system pressure gauge.
The group is complete with flowmeter, available on request in different calibrations. It integrates the connections for the fill and drain of the circuit.
The module is supplied as standard with Grundfos UPM3 Solar ErP-Ready circulator.
On request, different circulators can be supplied, for hydraulic characteristics or energy efficiency.
Innovative design and compact dimensions characterize the protection cover of the direct circulation group. Molded in solid EPP with a density of 45 Kg / sqm, it guarantees the protection of all the functional elements of the product as well as a high level of thermal insulation. Its particular structure makes it possible to make the most of the installation space but without compromising maintainability.
Practical cable guides directly on the cover, ensure maximum freedom during installation allowing them to pass in all directions.
