Description
The solar circulation groups NOVASOL MONO series 6613 are able to ensure the right flow rate and an adequate prevalence of carrier fluid in solar panel systems.

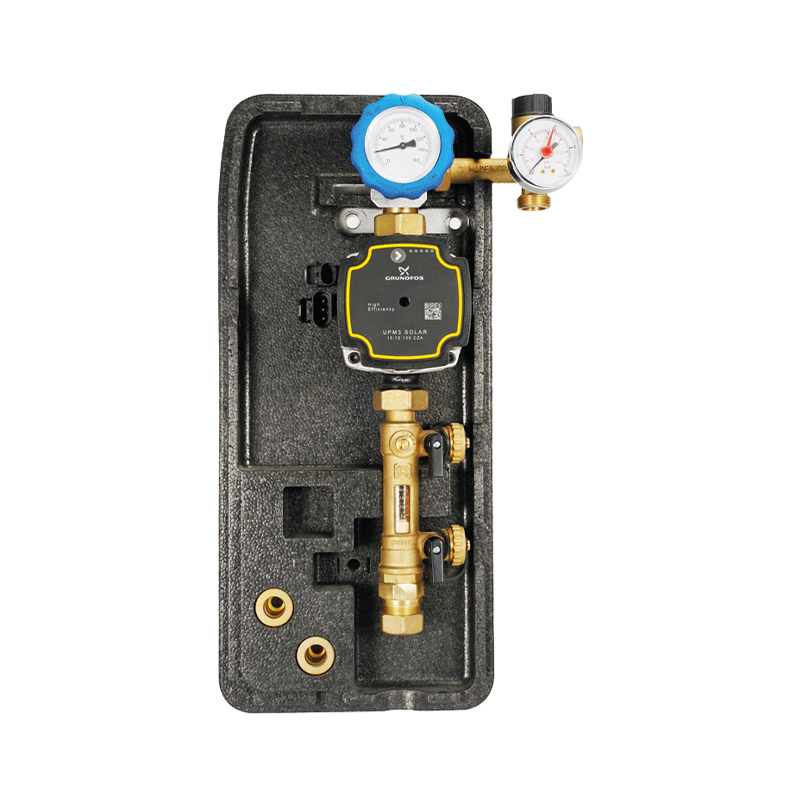

The group includes the system shut-off valve with thermometer and non-return valve. It is possible to exclude the non-return valve in case of system mainteinance. There is a safety group with a safety valve suitable for solar systems, a connection for the expansion vessel and a system pressure gauge.
The group is complete with flowmeter, available on request in different calibrations. It integrates the connections for loading/unloading the circuit.
The group is supplied as standard with a Grundfos UPM3 Solar ErP-Ready circulator, settable to constant curve or PWM.
Different circulators can be supplied on request, for hydraulic characteristics or energy efficiency.

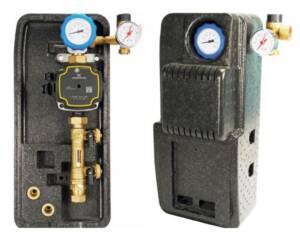

Innovative design and compact dimensions characterize the protection cover of the direct circulation group.
Printed in solid EPP with a density of 45 kg/m2, it guarantees protection for all the functional elements of the product as well as a high level of thermal insulation. Its particular structure allows to make the most of the installation space but without compromising maintainability.
PPractical cable guides directly on the cover, ensure maximum freedom during installation allowing them to pass in all directions.

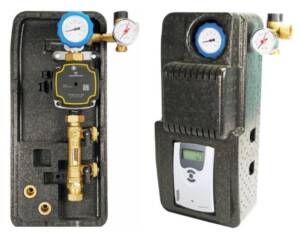

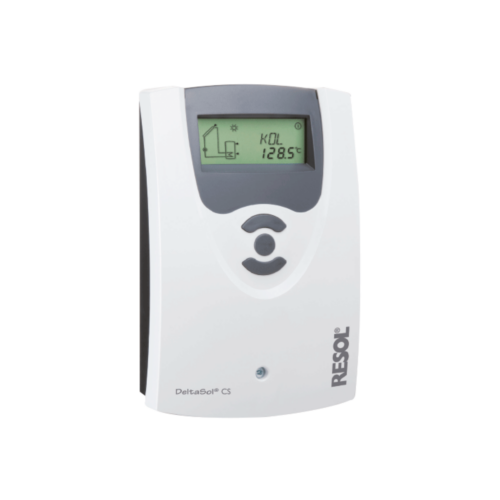

The NOVASOL MONO 6613 version integrates the control group of the RESOL CS4 series. This allows to have an extremely simple and compact group but complete with all the essential functions for the control of solar systems.
