Description

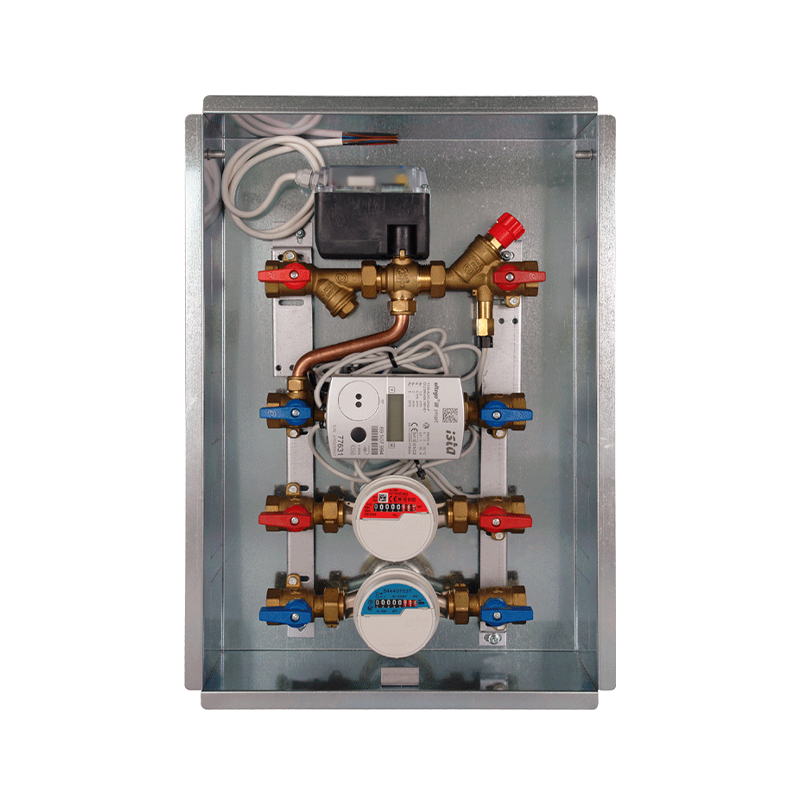

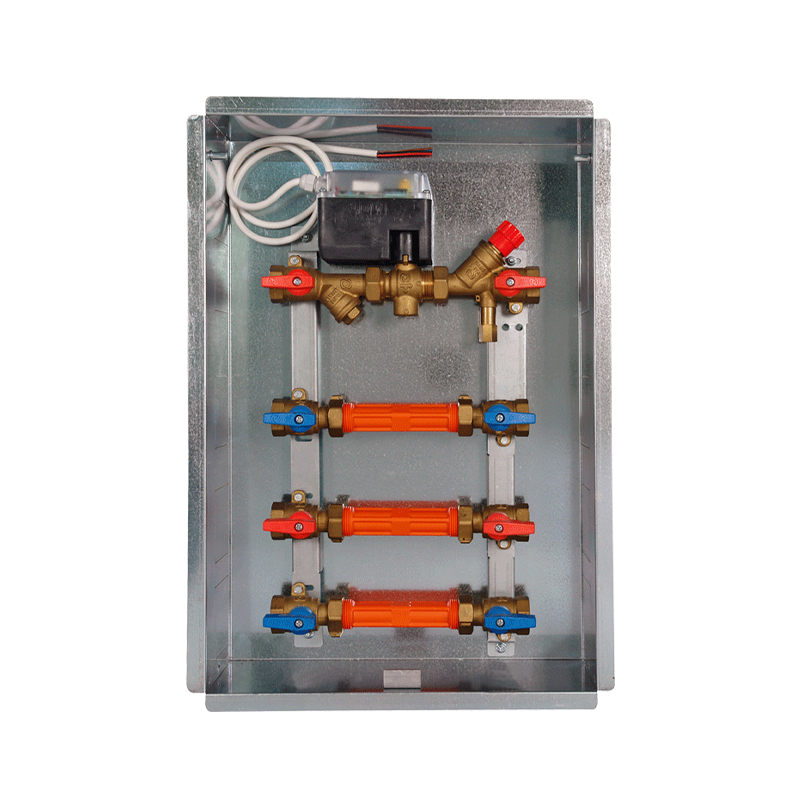

The NOVACdC 11000 module is able to manage the two-way (Mod. 11100) or the three-way (Mod. 11110) heating circuit. The heating and sanitary hot/cold water user consumption can be metered.
The NOVACdC 11000 module allows thermal autonomy and the consequent metering of direct consumption.
The basic functions are:
– ON/OFF regulation with 2 or 3-way zone valve;
– shut-off ball valves on all circuits;
– flow rate regulation in the heating circuit;
– strainer in the heating circuit supply.
The optional functions are:
– heat metering (heat meter);
– volumetric meters for sanitary hot/cold water.
The accounting of the consumptions inside the box takes place through the counters: the module is supplied as standard without meters. On request, heat meter and domestic hot/cold water meter can be supplied as optional. In this way the customer can choose what type of meters to use based on specific needs.
The module can be mounted in a horizontal or vertical position, offers high hydraulic performance and adapts to different plant solutions, offering modularity in the assembly, in the available configurations and in different sizes.

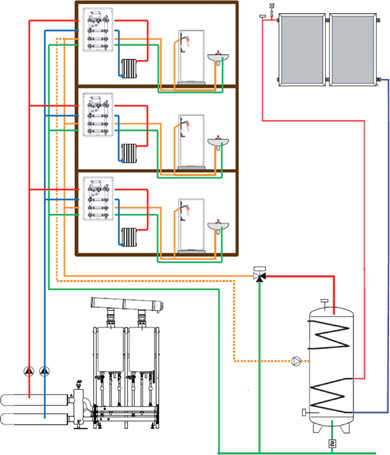

The functioning and the method of installation of this thermoregulation and accounting system may vary based on some variable factors, such as the size of the building, the characteristics of the heating plant and the type of distribution system.
The NOVACdC 11000 module presents a 3/4″ F connections for heating circuit and a 3/4″ F connections for sanitary circuit.
This module looks like a preassembled box able to optimize the required functions and minimize the necessary masonry work.
