Description

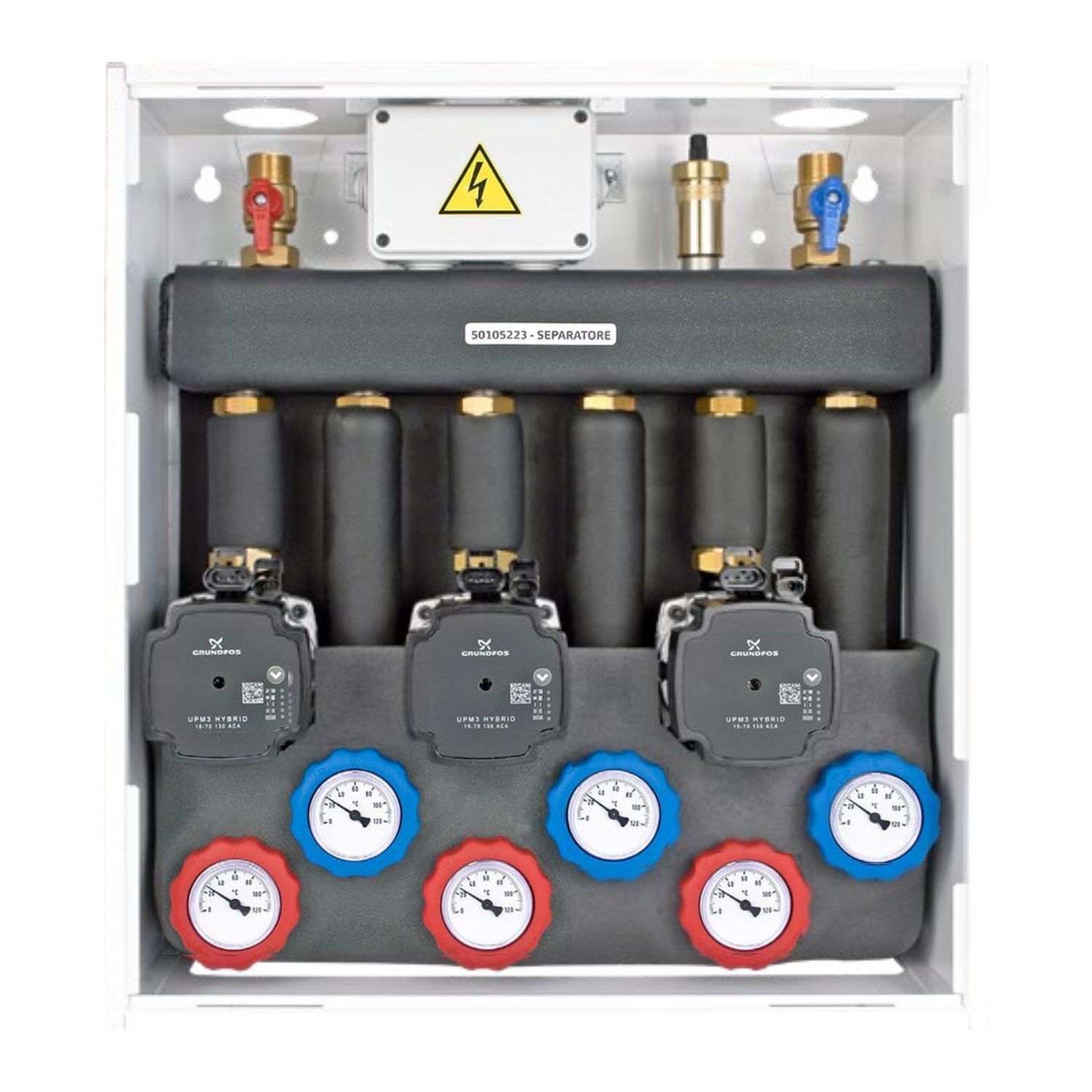

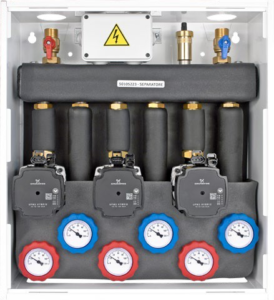

The NOVAZONE HEAT PUMP modules are designed as a hydraulic complement to be paired with heat pumps. This module ensures the correct flow of the heat transfer fluid and adequate head in all heating systems. The hydraulic collector is integrated within this module.
The excellent insulation present individually on each pipe and valve helps maintain the water temperature effectively. This allows optimal operation with both hot and cold water. Each zone is supplied as standard with a Grundfos UPM3 Hybrid circulator, ErP-Ready.
The factory-set circulator operates in proportional pressure mode but can be easily adjusted to:
-
PWM: External control via PWM, profile A or C
-
PP: Proportional pressure
-
CP: Constant pressure
-
CC: Constant curve
-
AA: AUTOADAPT
Each individual zone includes, in addition to the circulator, supply and return valves, check valves, and, in some configurations, analog thermometers. Each valve also integrates a pocket for a temperature probe to monitor temperature, both on the supply and return sides. Upon request, different circulators can be provided based on hydraulic characteristics or energy efficiency. Its special structure allows optimal use of installation space without compromising maintainability. The module can be installed on a wall or recessed.
