Description

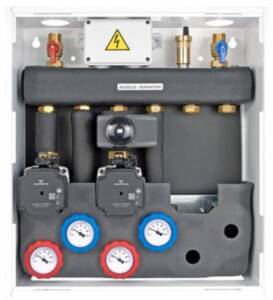

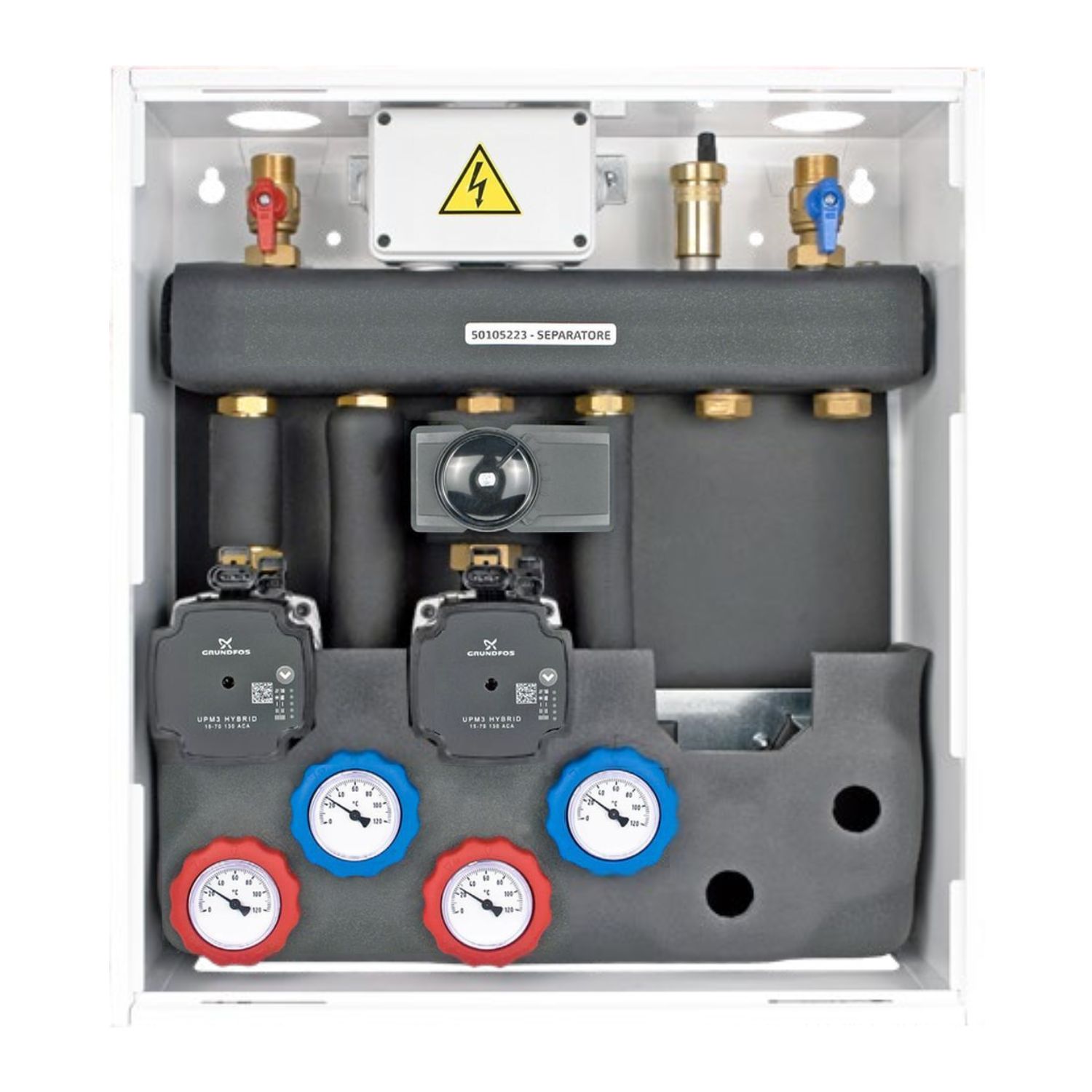

The NOVAZONE HEAT PUMP module is designed as a hydraulic complement to be paired with heat pumps. This module ensures the correct flow rate of the carrier fluid and adequate head pressure in all heating systems. An integrated hydraulic manifold is included within this module.
The excellent insulation, applied individually to each pipe and valve, helps maintain the water temperature effectively. Thanks to this, it is possible to operate optimally with both hot and cold water. Each zone comes standard with a Grundfos UPM3 Hybrid circulator, ErP-Ready.
The factory-set circulator is configured for proportional pressure operation but can easily be adjusted to:
- PWM: External control via PWM, profile A or C
- PP: Proportional pressure
- CP: Constant pressure
- CC: Constant curve
- AA: AUTOADAPT
Each zone includes, in addition to the circulator, supply and return valves, non-return valves, and in some configurations, analog thermometers. Each valve also features a pocket for a sensor to monitor the temperature in both the supply and return lines. Upon request, different circulators can be provided, based on hydraulic characteristics or energy efficiency. The module’s particular design allows for optimal use of the installation space without compromising maintainability. It can be installed either wall-mounted or recessed.
