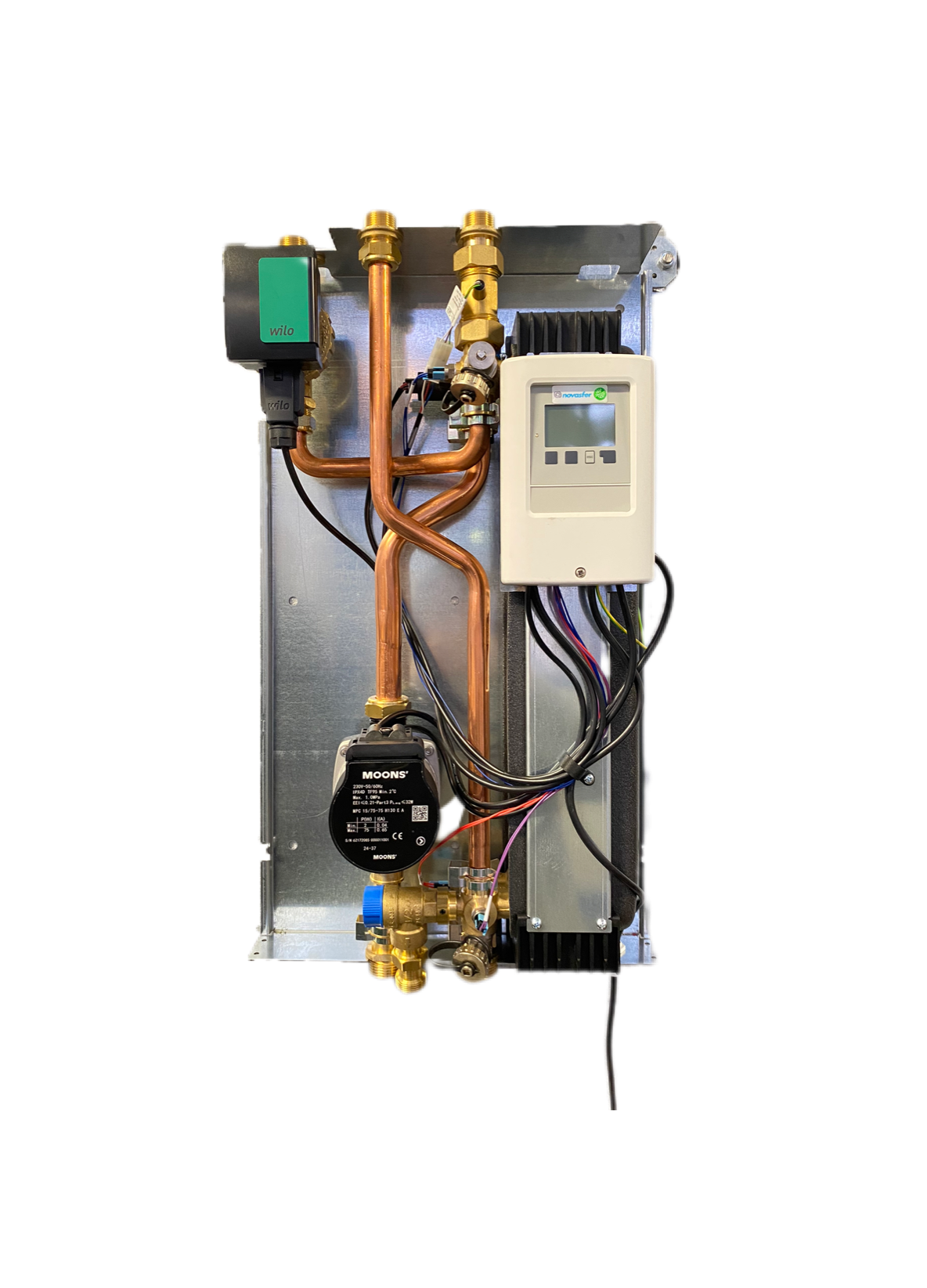

NOVAHYDRO PREMIUM

ART. 8120/8220 PREMIUM

The new FWS product range from Novasfer is the perfect solution for instantaneous Domestic Hot Water production. The innovative control algorithm allows the FWS to integrate with thermal storage tanks powered by Heat Pumps or Condensing Boilers. High performance, energy efficiency, compact size, and easy maintenance are the common features of the NovaHYDRO platform.

Category: Product ID: 20587

Versions

NOVAHYDRO PREMIUM

NOVAHYDRO S PREMIUM

ART. 8120

Cod. 199081201
Scarica il catalogo
NOVAHYDRO PREMIUM

NOVAHYDRO M PREMIUM

ART. 8220

Cod. 199082201
Scarica il catalogo

Description

The Novahydro FWS series is equipped with high-efficiency heat exchangers and performs exceptionally well when combined with heat pump generators.

Complete, Plug&Play, Compact.

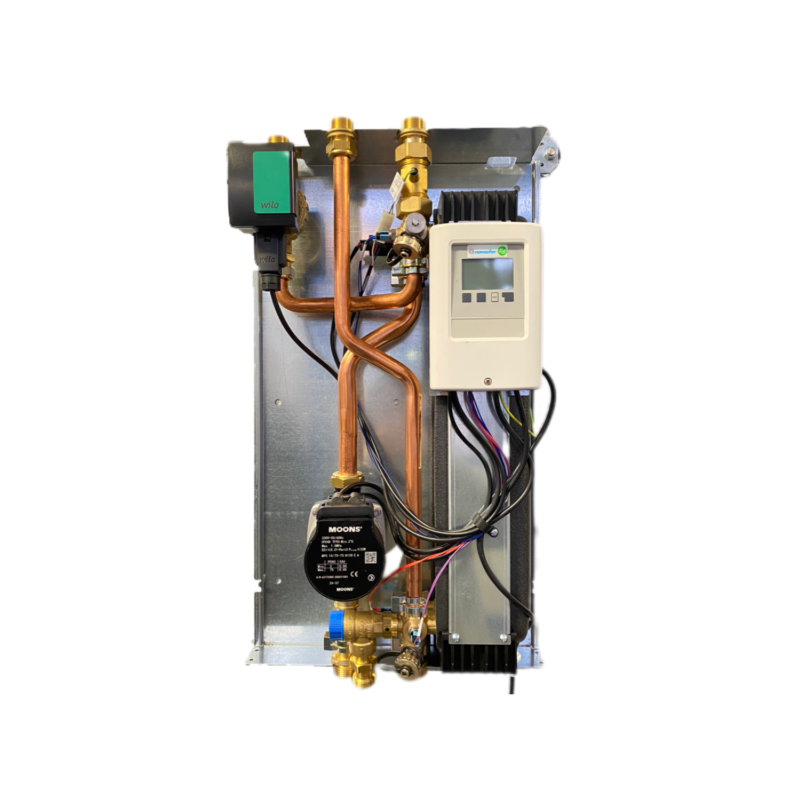

The FWS Premium module combines compactness and ease of use with all the features required for efficient domestic hot water production. The module integrates sanitary recirculation, installation accessories, safety features, and system sensors. The best solution for the instantaneous production of hot sanitary water when paired with low-temperature generators. Available in sizes S and M, with capacities up to 36 lt/min and 60 lt/min.

THE PRODUCT

The Novahydro FWS series is equipped with high-efficiency heat exchangers and performs exceptionally well when combined with heat pump generators.

Complete, Plug&Play, Compact.

The FWS Premium module combines compactness and ease of use with all the features required for efficient domestic hot water production. The module integrates sanitary recirculation, installation accessories, safety features, and system sensors. The best solution for the instantaneous production of hot sanitary water when paired with low-temperature generators. Available in sizes S and M, with capacities up to 36 lt/min and 60 lt/min.

Scheme

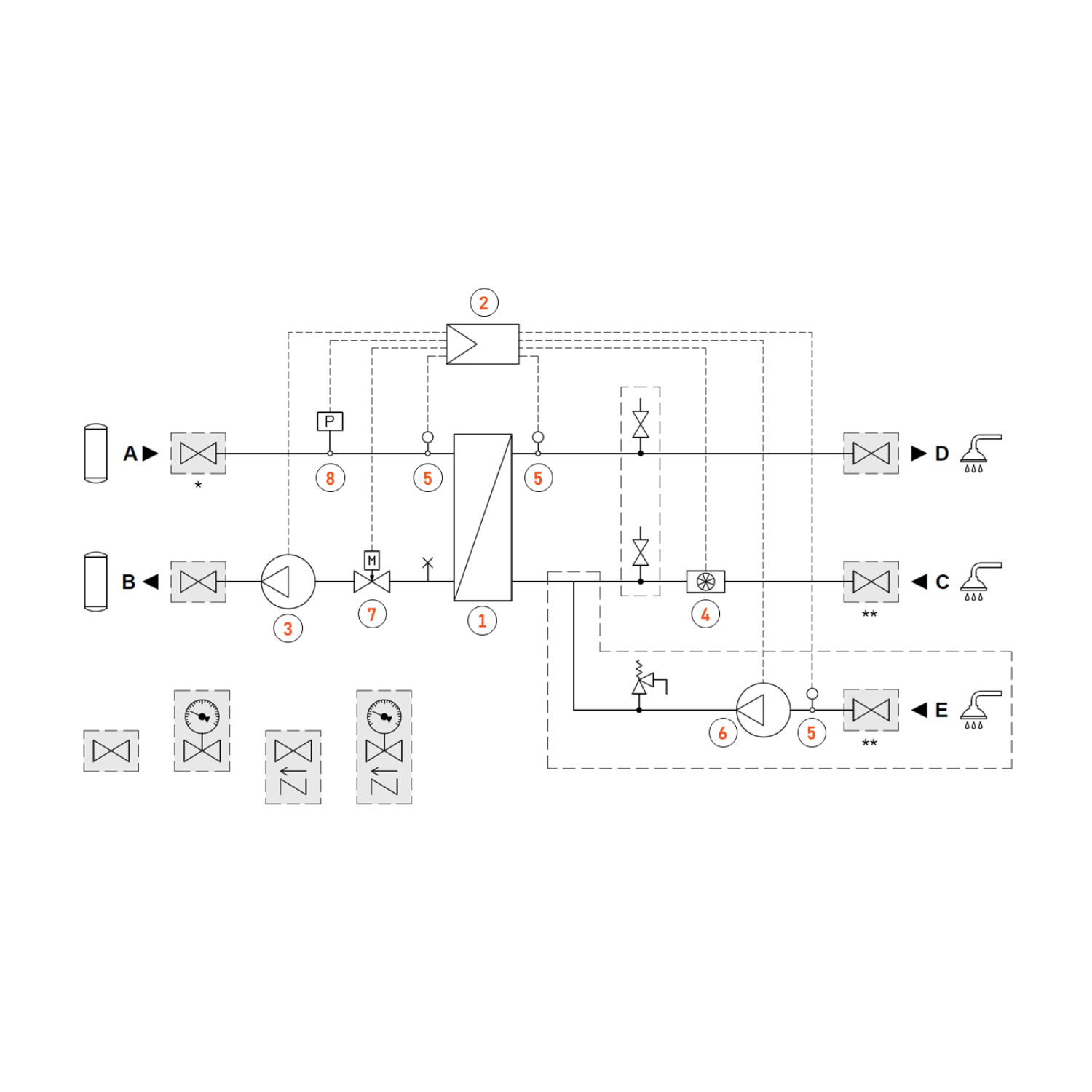

Hydraulic diagram and list of components S Premium

  • 1 - Heat exchanger with 20 plates
  • 2 - Control unit
  • 3 - Primary pump circuit
  • 4 - Flow meter 1-30 L/min
  • 5 - Temperature sensor
  • 6 - Pump circulation function
  • 7 - Primary modulating flow valve
  • 8 - Pressure sensor

Hydraulic diagram and list of components M Premium

  • 1 - Heat exchanger with 36 plates
  • 2 - Control unit
  • 3 - Primary pump circuit
  • 4 - Flow meter 1-60 L/min
  • 5 - Temperature sensor
  • 6 - Pump circulation function
  • 7 - Primary modulating flow valve
  • 8 - Pressure sensor
