Description

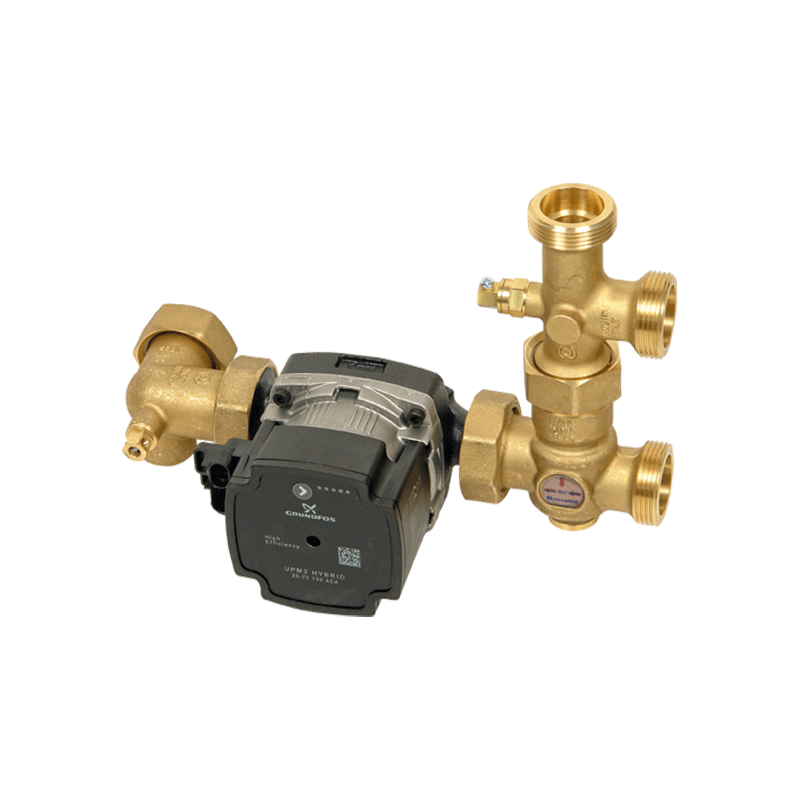

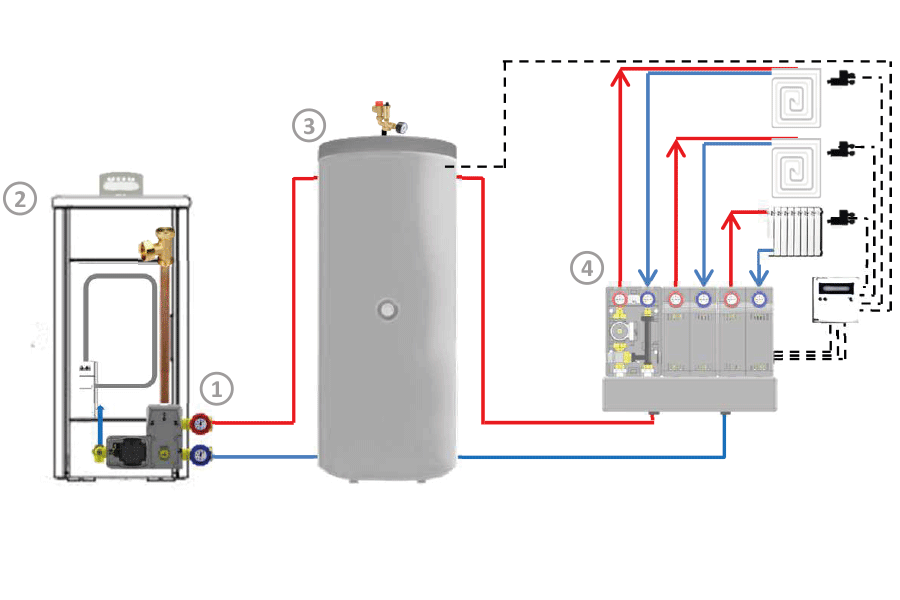

The NOVAMAT group is a pre-assembled and tested hydraulic kit designed to ensure the circulation of the heat transfer fluid and the anti-condensation function between a biomass generator and a heating circuit.
Ensuring proper preheating and a correct return temperature to the generator always guarantees a significantly higher performance and lifespan of the generator. NOVAMAT becomes crucial in the case of circuits paired with thermal storage, as the constant low return temperature could irreparably damage the primary heat exchanger.
NOVAMAT is supplied as standard with connections on both the primary and system sides, optimizing installation times and avoiding any assembly errors. The layout with outputs to the right can be easily reversed to suit different installation needs. The insulating cover and connection for the expansion vessel are included as standard, completing the product.
In the “Erp” model, the group is supplied as standard with a Grundfos UPM3 Hybrid circulator, 130mm or 180mm in length.
The factory-installed circulator is set to proportional pressure, but it can be easily adjusted to: PWM: external control via PWM
PP: Proportional pressure
CP: Constant pressure
CC: Constant curve
AA: AUTOADAPT
A wide range of settings for the anti-condensation valve, the possibility to replace the thermostatic element directly during installation, and numerous accessories make NOVAMAT extremely easy to use and adaptable to different system needs.
